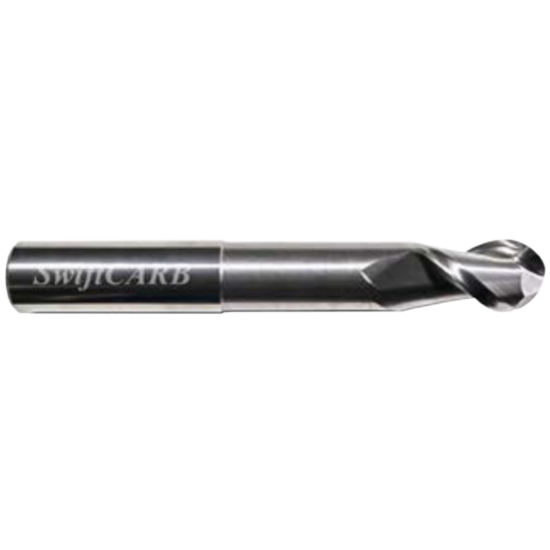

SWIFTCARB AC031227QKAIB000 DIA 5/16 SH 0.3125 LOC 0.4370 OAL 6.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAC031227QKAIB000
Delivery date: 3-5 days
$84.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Side Milling, Copy Milling, Ball Milling
Package Size 1
Shipping State Washington
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Neck Length 4.0000 101.60MM
Flutes/Inserts 2
Cutter Style Carbide Ball Finisher
Helix Angle Variable
Single/Double End Single End
Cutter Dia 0.3125 7.94MM - 5/16
End Of Tool Shape Ball Nose
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 6.0000 152.40MM
Length Of Cut 0.4370 11.10MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.313 x 0.313 x 0.437 x 6.000
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard / With Neck
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Mold Yes
Job Shop Yes
