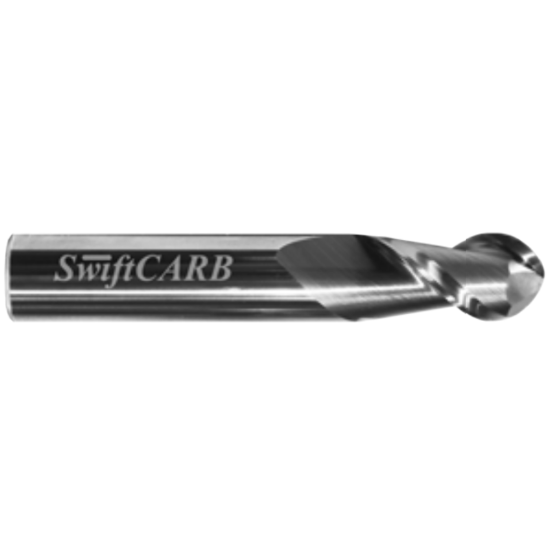

SWIFTCARB AC0125258000B000 DIA 1/8 SH 0.1250 LOC 0.2500 OAL 1.50 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAC0125258000B000
Delivery date: 3-5 days
$19.76

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Side Milling, Copy Milling, Ball Milling
Made In USA Yes
Performance Rating High Performance
Shipping State Washington
Package Size 1
Dimensional Specifications
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Helix Angle Variable
Cutter Dia 0.1250 3.18MM - 1/8
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.125 x 0.125 x 0.250 x 1.500
Overall Len 1.5000 38.10MM
Length Of Cut 0.2500 6.35MM
End Of Tool Shape Ball Nose
Flutes/Inserts 2
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
