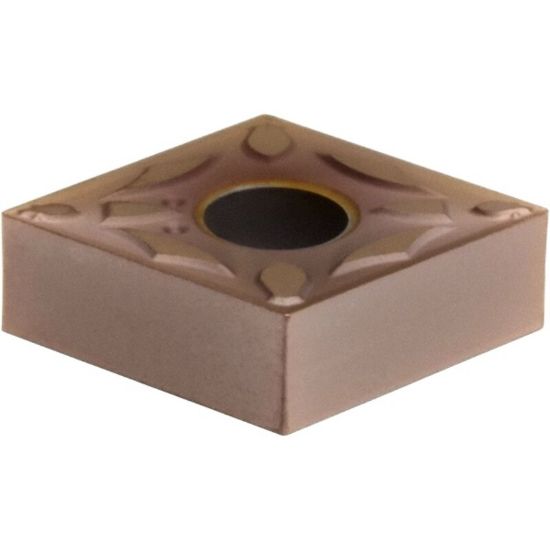

SUMITOMO CNMG432 EFA T3000Z Turning Insert 80.0° Cermet 0.031 Radius

ANSI: CNMG432 EFA T3000Z

ISO: CNMG120408 EFA T3000Z

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SUMITOMO
SKU: SUM19EYBNE
Delivery date: 3-5 days
$8.72

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Type 80° Negative Turning Insert with Hole

Grade and Coating Description

For interrupted machining of steel · Grade with a tough substrate for interrupted finishing

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Application Semi Finishing, Medium
Package Size 10
Coating ZX Coat
Grade T3000Z
Insert Type Negative
Application Turning Insert
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12 "43"
Cut Rating <40HRC Steel, Ductile Iron
Corner Radius 0.0313 0.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Cutting Edge Mat Cermet
