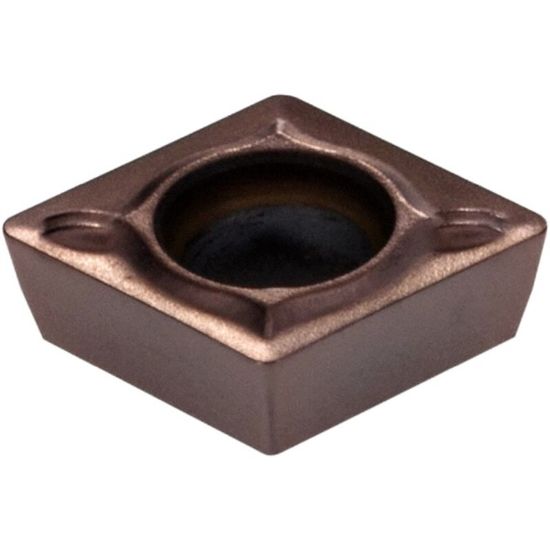

SUMITOMO CCMT32.52 EFP T2000Z Turning Insert 80.0° Cermet 0.031 Radius

ANSI: CCMT32.52 EFP T2000Z

ISO: CCMT09T308 EFP T2000Z

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SUMITOMO
SKU: SUM19DXW1U
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Type 80° Positive Turning Insert with Hole

Grade and Coating Description

Adopts Brilliant Coat for excellent lubricity and higher machined surface quality

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Application Semi Finishing, Finishing
Coating Brilliant Coat
Grade T2000Z
Shipping State Illinois
Insert Type Positive
Application Turning Insert
Made In USA No
Package Size 10
Dimensional Specifications
Corner Radius 0.0313 0.80MM
Cut Rating <40HRC Steel, Ductile Iron
Insert Size Ic 09 "32"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Cutting Edge Mat Cermet
Insert Style CC
