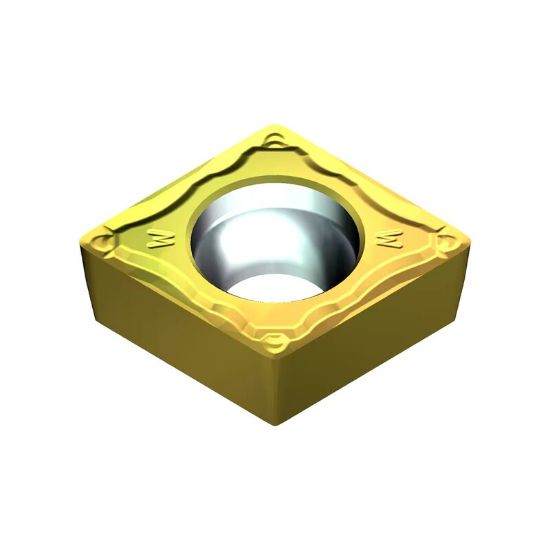

SUMITOMO CCMT32.51 ELUW T1500Z Turning Insert 80.0° Cermet 0.015 Radius

ANSI: CCMT32.51 ELUW T1500Z

ISO: CCMT09T304 ELUW T1500Z

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SUMITOMO
SKU: SUM194ABVY
Delivery date: 3-5 days
$7.51

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Type 80° Positive Turning Insert with Hole

Grade and Coating Description

Adopts Brilliant Coat for excellent lubricity and higher machined surface quality

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Made In USA No
Insert Application Finishing, Semi Finishing
Insert Type Positive
Package Size 10
Insert/Tool Insert
Grade T1500Z
Coating Brilliant Coat
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 09 "32"
Corner Radius 0.0156 0.40MM
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
