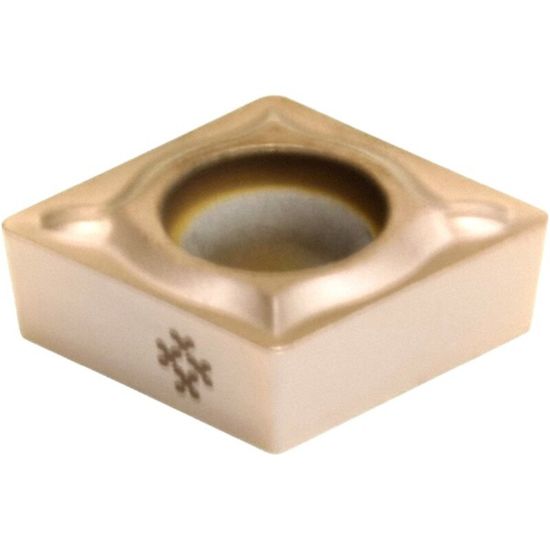

Picture of SUMITOMO CCMT32.50.5 ESU T3000Z Turning Insert 80.0° Cermet 0.007 Radius

SUMITOMO CCMT32.50.5 ESU T3000Z Turning Insert 80.0° Cermet 0.007 Radius

ANSI: CCMT32.50.5 ESU T3000Z

ISO: CCMT09T302.5 ESU T3000Z

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SUMITOMO
SKU: SUM19EY122
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Type 80° Positive Turning Insert with Hole

Grade and Coating Description

For interrupted machining of steel · Grade with a tough substrate for interrupted finishing

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Made In USA No
Shipping State Illinois
Coating ZX Coat
Grade T3000Z
Insert Application Finishing, Semi Finishing
Insert Type Positive
Insert/Tool Insert
Package Size 10
Dimensional Specifications
Insert Size Ic 09 "32"
Corner Radius 0.0078 0.20MM
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
