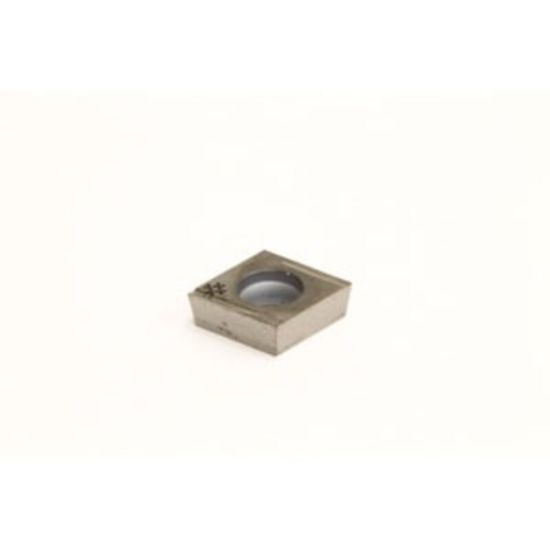

SUMITOMO CCMT21.52 ESU T1200A Turning Insert 80.0° Cermet 0.031 Radius

ANSI: CCMT21.52 ESU T1200A

ISO: CCMT060208 ESU T1200A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SUMITOMO
SKU: SUM19CABPD
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Type 80° Positive Turning Insert with Hole

Grade and Coating Description

T1200A grade a general purpose grade that employs a substrate with an improved balance between fracture and wear resistance to deliver superior finished surfaces in a wide variety of cutting conditions

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 10
Application Turning Insert
Made In USA No
Insert Application Finishing, Semi Finishing
Insert Type Positive
Grade T1200A
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 06 "21"
Cut Rating <40HRC Steel, Ductile Iron
Corner Radius 0.0313 0.80MM
Cutting & Machining Properties
Insert Style CC
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 80.0°
