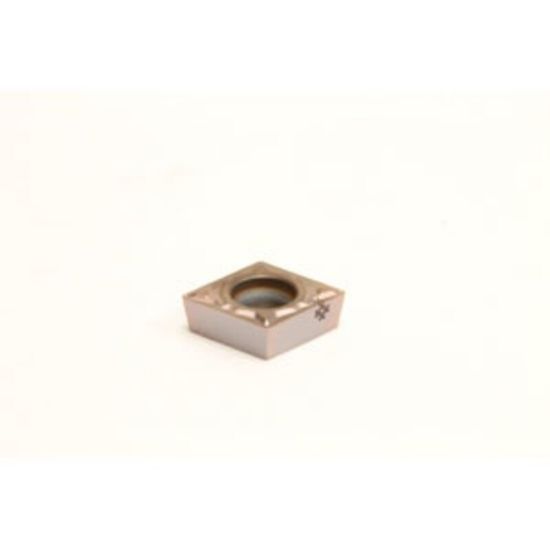

SUMITOMO CCMT21.51 ELU T3000Z Turning Insert 80.0° Cermet 0.015 Radius

ANSI: CCMT21.51 ELU T3000Z

ISO: CCMT060204 ELU T3000Z

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SUMITOMO
SKU: SUM19EYBVN
Delivery date: 3-5 days
$6.34

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Type 80° Positive Turning Insert with Hole

Grade and Coating Description

For interrupted machining of steel · Grade with a tough substrate for interrupted finishing

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Made In USA No
Insert Application Finishing, Semi Finishing
Insert Type Positive
Insert/Tool Insert
Coating ZX Coat
Grade T3000Z
Shipping State Illinois
Package Size 10
Dimensional Specifications
Insert Size Ic 06 "21"
Corner Radius 0.0156 0.40MM
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
