SUMITOMO 4NC-VNGA 332 BNC2010 Turning Insert 35.0° CBN 0.031 Radius

ANSI: 4NC-VNGA 332 BNC2010

ISO: 4NC-VNGA 160408 BNC2010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SUMITOMO
SKU: SUM166QELP
Delivery date: 3-5 days
$124.22

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

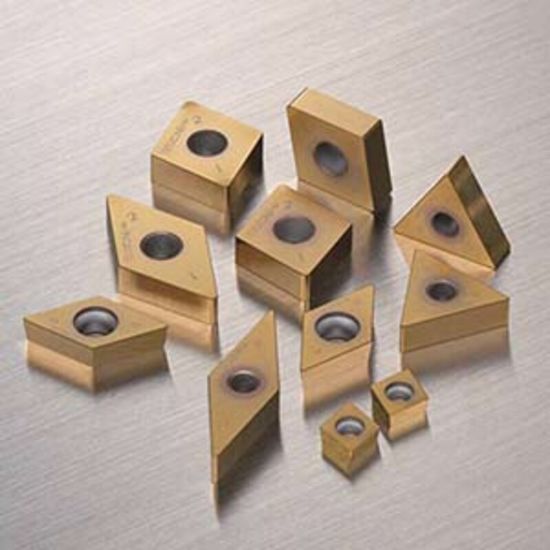

Type 35° Negative Turning Insert with Hole

Grade and Coating Description

Improved wear resistance from coating and substrate, achieves excellent and consistent surface finish.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Application Semi Finishing, Finishing
Coating TiCN
Package Size 10
Insert Type Negative
Application Turning Insert
Made In USA No
Grade BNC2010
Shipping State Illinois
Dimensional Specifications
Cut Rating >50HRC Steel
Insert Size Ic 16 "33"
Corner Radius 0.0313 0.80MM
Cutting & Machining Properties
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Cutting Edge Mat CBN
