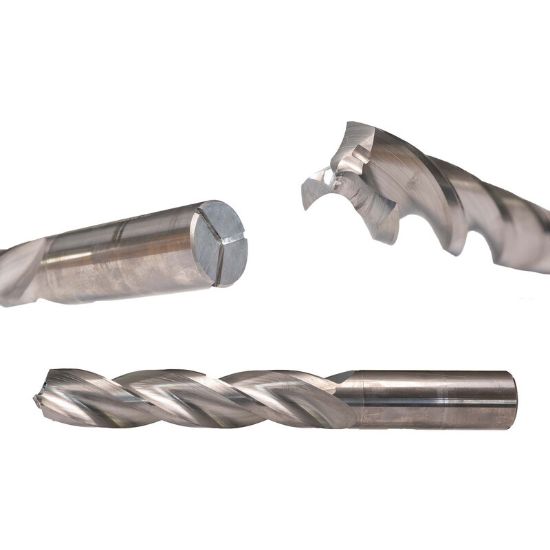

STI 4844-5XN-0 Carbide Drill Solid Three Flute 130° 0.484 Diameter Cylindrical Shank0.6299 5.248 OAL 3.248 Flute Length 5.0XD-8.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: STI
SKU: SPE4844-5XN-00
Delivery date: 3-5 days
$178.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Shipping State Wisconsin
Package Size 1
Made In USA Yes
Dimensional Specifications
Flute Length 3.2480 82.50MM
Flutes/Inserts 3
Dia Deep 5.0XD-8.0XD
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 5.2480 133.30MM
Included Angle 130°
Cut Dia Min 0.4842 12.30MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutter Dia 0.4842 12.30MM
Cut Rating Aluminum, Copper, Gray Iron, High Temp, Titanium
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
