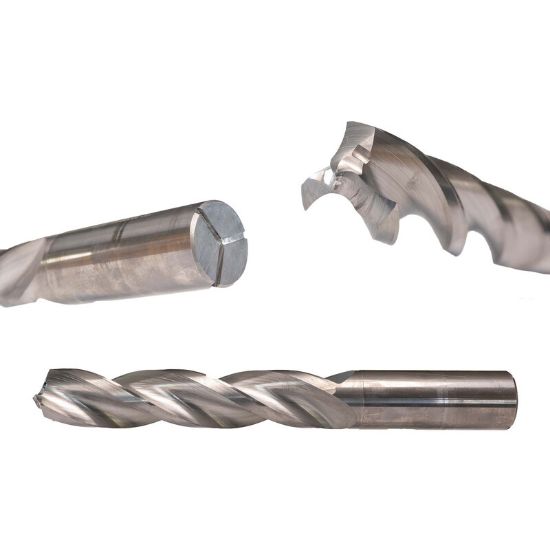

STI 2910-5XN-0 Carbide Drill Solid Three Flute 130° 0.291 Diameter Cylindrical Shank0.3150 3.248 OAL 1.598 Flute Length 5.0XD-8.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: STI
SKU: SPE2910-5XN-00
Delivery date: 3-5 days
$81.85

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Shipping State Wisconsin
Made In USA Yes
Package Size 1
Dimensional Specifications
Cut Dia Min 0.2910 7.39MM
Flute Length 1.5980 40.59MM
Overall Len 3.2480 82.50MM
Cut Rating Aluminum, Copper, Gray Iron, High Temp, Titanium
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Included Angle 130°
Tool Material Carbide
Machine Side Connection Size 0.3150 8.00MM
Dia Deep 5.0XD-8.0XD
Cutter Dia 0.2910 7.39MM
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
