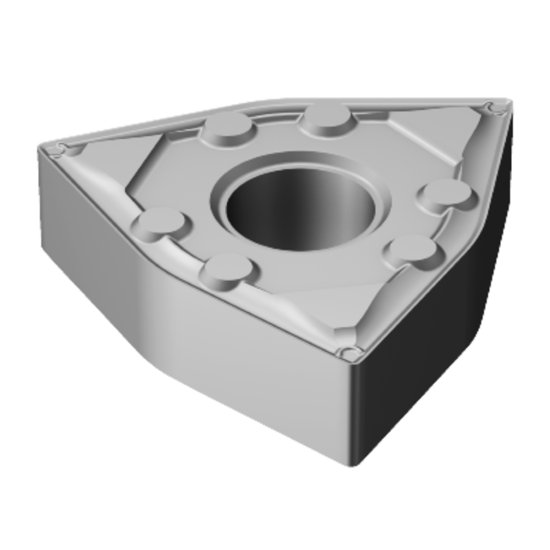

Picture of SANDVIK WNMG 431-WF 5015 Turning Insert Trigon

SANDVIK WNMG 431-WF 5015 Turning Insert Trigon

ANSI: WNMG 431-WF 5015

ISO: WNMG080404-WF 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5756554
Delivery date: 3-5 days
$18.70

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Shipping State Illinois
Insert/Tool Insert
Insert Application Finishing, Semi Finishing
Grade 5015
Insert Type Negative
Application Turning Insert
Made In USA No
Dimensional Specifications
Insert Size Ic 12 "43"
Cut Rating <48HRC Steel
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Cutting Edge Mat Cermet
Insert Style WN
Hand R/L Neutral
