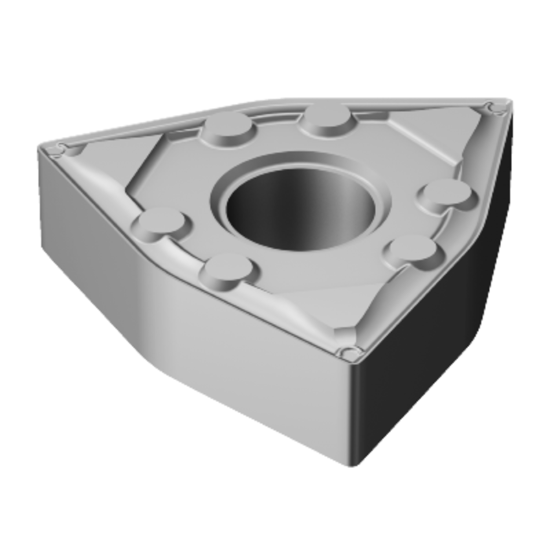

SANDVIK WNMG 331-WF 5015 Turning Insert Trigon Cermet 0.016 Corner Radius

ANSI: WNMG 331-WF 5015

ISO: WNMG060404-WF 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5756295
Delivery date: 3-5 days
$15.00

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Grade 5015
Shipping State Illinois
Package Size 10
Insert Type Negative
Application Turning Insert
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Cut Rating <48HRC Steel
Insert Size Ic 06 "33"
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Style WN
Hand R/L Neutral
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Trigon
