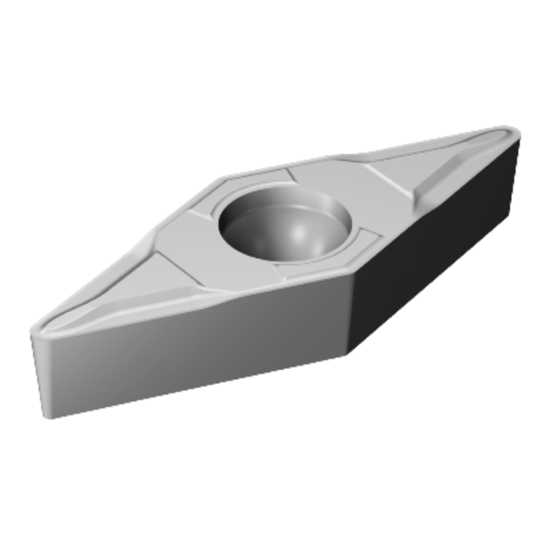

SANDVIK VCMT 220-PF 5015 Turning Insert 35.0°

ANSI: VCMT 220-PF 5015

ISO: VCMT 110302-PF 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5755865
Delivery date: 3-5 days
$18.54

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Insert Type Positive
Package Size 10
Shipping State Illinois
Grade 5015
Application Turning Insert
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 11 "21"
Cut Rating <48HRC Steel
Corner Radius 0.0080 0.20MM
Cutting & Machining Properties
Hand R/L Neutral
Insert Style VC
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 35.0°
