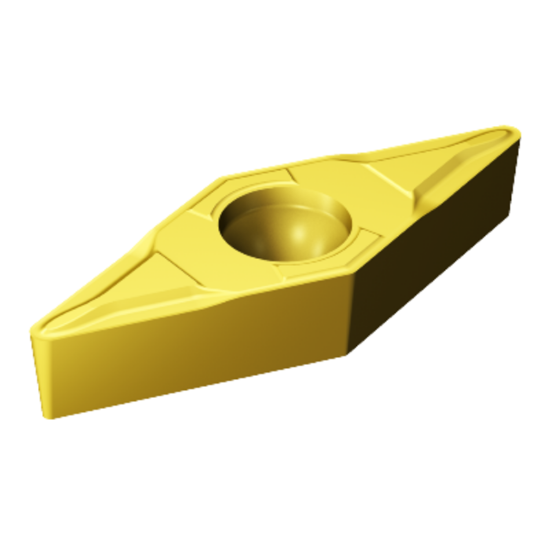

SANDVIK VBMT 333-MF 2015 Turning Insert 35.0° TiCN + Al2O3 + TiN Carbide 0.047 Corner Radius

ANSI: VBMT 333-MF 2015

ISO: VBMT 160412-MF 2015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5755812
Delivery date: 3-5 days
$20.34

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CVD TiCN+Al2O3+TiN STAINLESS STEEL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Shipping State Illinois
Application Turning Insert
Made In USA No
Insert Application Finishing, Semi Finishing
Insert Type Positive
Coating TiCN + Al2O3 + TiN
Grade 2015
Package Size 10
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Cut Rating Stainless
Insert Size Ic 16 "33"
Cutting & Machining Properties
Insert Style VB
Cutting Edge Mat Carbide
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 35.0°
