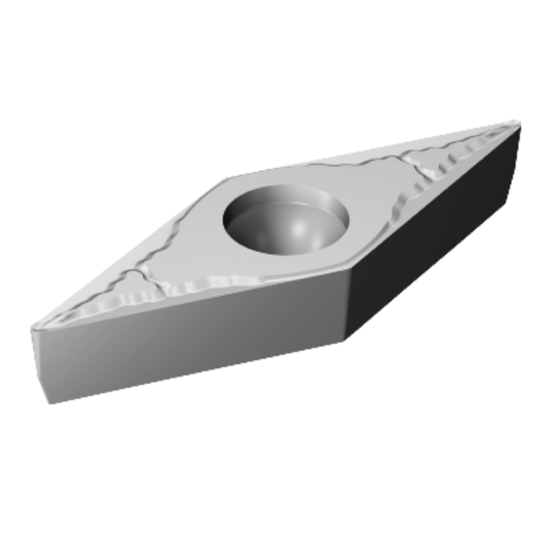

SANDVIK VBMT 331-Powder Metal 5015 Turning Insert 35.0° Cermet 0.016 Corner Radius

ANSI: VBMT 331-PM 5015

ISO: VBMT 160404-PM 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5755656
Delivery date: 3-5 days
$19.56

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Medium
Insert Type Positive
Application Turning Insert
Package Size 10
Insert/Tool Insert
Made In USA No
Shipping State Illinois
Grade 5015
Dimensional Specifications
Insert Size Ic 16 "33"
Cut Rating <48HRC Steel
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Hand R/L Neutral
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VB
