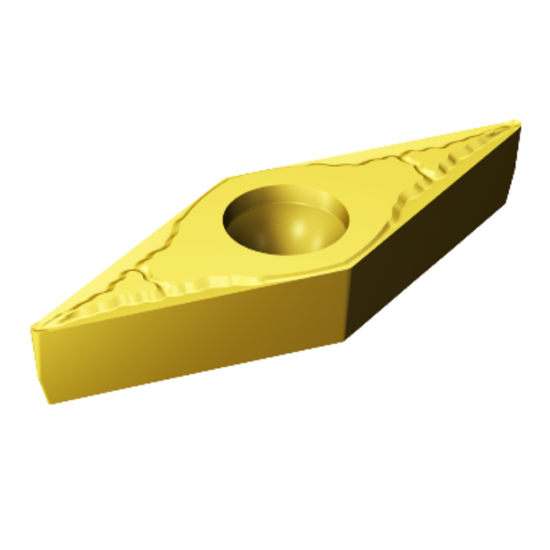

SANDVIK VBMT 331-Powder Metal 1525 Turning Insert 35.0° TiAIN + TiN Cermet 0.016 Corner Radius

ANSI: VBMT 331-PM 1525

ISO: VBMT 160404-PM 1525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5755632
Delivery date: 3-5 days
$19.63

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD TiCN+TiN STEEL GENERAL MACHINING

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Medium, Semi Finishing
Application Turning Insert
Made In USA No
Grade 1525
Insert/Tool Insert
Coating TiAIN + TiN
Package Size 10
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Insert Size Ic 16 "33"
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 35.0°
Cutting Edge Mat Cermet
Insert Style VB
