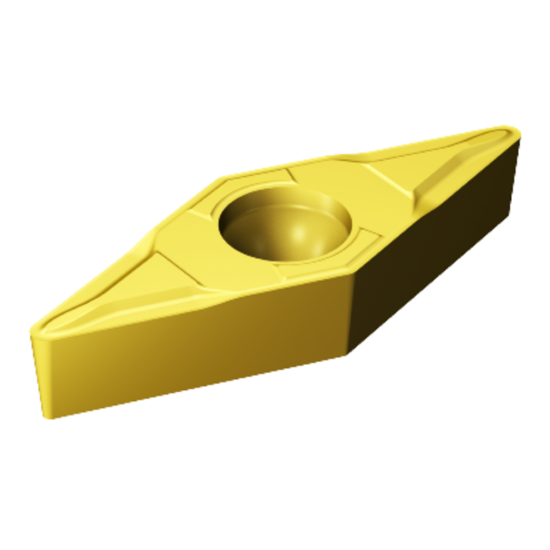

SANDVIK VBMT 222-KF 3005 Turning Insert 35.0° TiCN + Al2O3 + TiN Carbide 0.031 Corner Radius

ANSI: VBMT 222-KF 3005

ISO: VBMT 110308-KF 3005

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5755615
Delivery date: 3-5 days
$17.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CVD TiCN+Al2O3+TiN IRON LIGHT INTERUPTION RIGID SETUP HARD GRADE

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Made In USA No
Insert Application Finishing, Semi Finishing
Insert Type Positive
Coating TiCN + Al2O3 + TiN
Insert/Tool Insert
Grade 3005
Shipping State Illinois
Package Size 10
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Corner Radius 0.0310 0.79MM
Insert Size Ic 11 "22"
Cutting & Machining Properties
Insert Style VB
Cutting Edge Mat Carbide
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 35.0°
