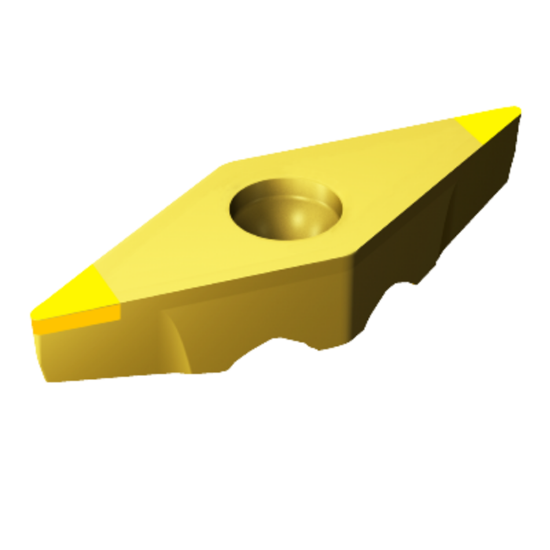

Picture of SANDVIK TR-VB1308S01020F 7015 Turning Insert 35.0° TiN CBN 0.031 Corner Radius

SANDVIK TR-VB1308S01020F 7015 Turning Insert 35.0° TiN CBN 0.031 Corner Radius

ANSI: TR-VB1308S01020F 7015

ISO: TR-VB1308S01020F 7015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5983716
Delivery date: 3-5 days
$100.84

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

TIN COATED CBN This CBN grade is your first choice for case and induction hardened steels. With its medium content of boron nitride, it is suitable for light to medium interrupted cuts.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 10
Insert Application Semi Finishing, Finishing
Insert Type Positive
Coating TiN
Application Turning Insert
Made In USA No
Insert/Tool Insert
Grade 7015
Dimensional Specifications
Insert Size Ic 13
Corner Radius 0.0310 0.79MM
Cut Rating >50HRC Steel
Cutting & Machining Properties
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Cutting Edge Mat CBN
Hand R/L Neutral
