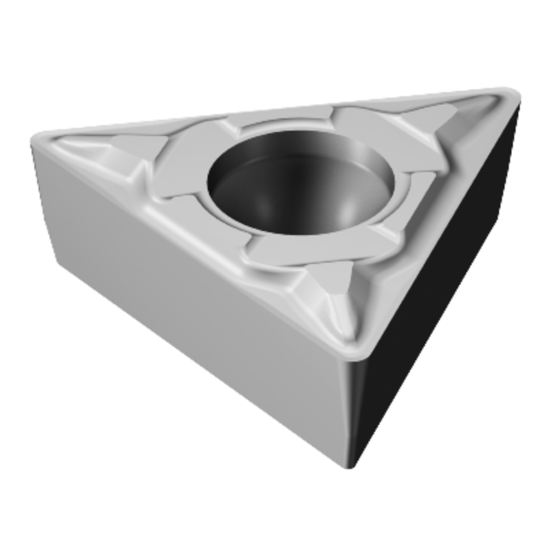

Picture of SANDVIK TPMT 1.2(1.2)0-PF 5015 Turning Insert Triangle

SANDVIK TPMT 1.2(1.2)0-PF 5015 Turning Insert Triangle

ANSI: TPMT 1.2(1.2)0-PF 5015

ISO: TPMT 06T102-PF 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5755296
Delivery date: 3-5 days
$11.86

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Grade 5015
Insert Type Positive
Package Size 10
Shipping State Illinois
Application Turning Insert
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 06 "1.2"
Corner Radius 0.0080 0.20MM
Cut Rating <48HRC Steel
Cutting & Machining Properties
Insert Style TP
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Neutral
