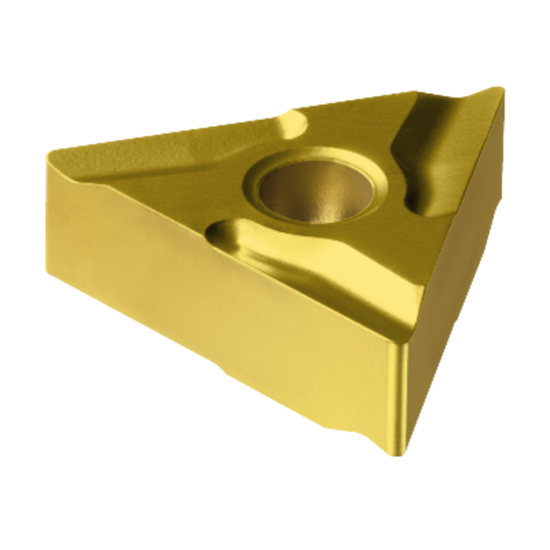

SANDVIK TNMG 332L-K 1525 Turning Insert Triangle

ANSI: TNMG 332L-K 1525

ISO: TNMG 160408L-K 1525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5754201
Delivery date: 3-5 days
$13.02

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD TiCN+TiN STEEL GENERAL MACHINING

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAIN + TiN
Package Size 10
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Medium
Application Turning Insert
Grade 1525
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 16 "33"
Corner Radius 0.0310 0.79MM
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
Insert Style TN
Hand R/L Left
