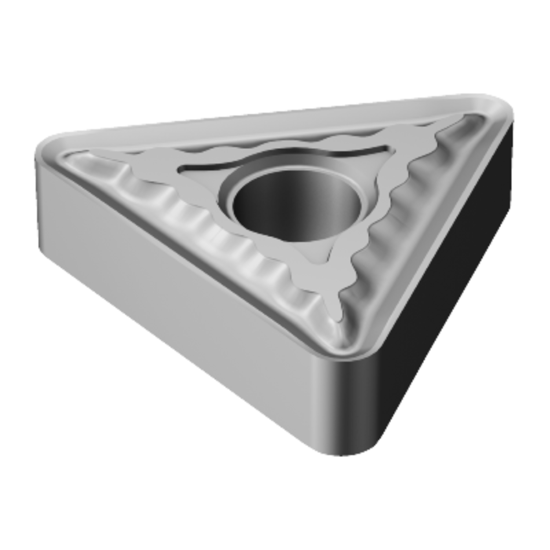

SANDVIK TNMG 222-QM 5015 Turning Insert Triangle

ANSI: TNMG 222-QM 5015

ISO: TNMG 110308-QM 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5753976
Delivery date: 3-5 days
$7.94

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Medium
Insert/Tool Insert
Grade 5015
Application Turning Insert
Package Size 10
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Insert Size Ic 11 "22"
Cut Rating <48HRC Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
Insert Style TN
Hand R/L Neutral
