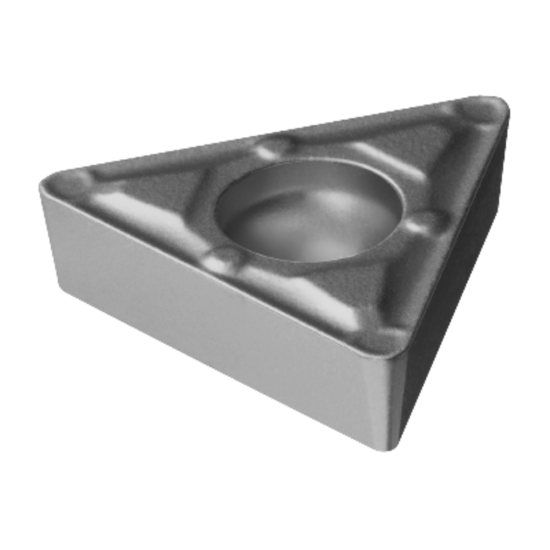

Picture of SANDVIK TCMX 3(2.5)1-WF 5015 Turning Insert Triangle

SANDVIK TCMX 3(2.5)1-WF 5015 Turning Insert Triangle

ANSI: TCMX 3(2.5)1-WF 5015

ISO: TCMX 16T304-WF 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5752892
Delivery date: 3-5 days
$17.04

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Made In USA No
Shipping State Illinois
Application Turning Insert
Insert/Tool Insert
Insert Type Positive
Package Size 10
Grade 5015
Dimensional Specifications
Cut Rating <48HRC Steel
Corner Radius 0.0160 0.41MM
Insert Size Ic 16 "32"
Cutting & Machining Properties
Hand R/L Neutral
Insert Style TC
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
