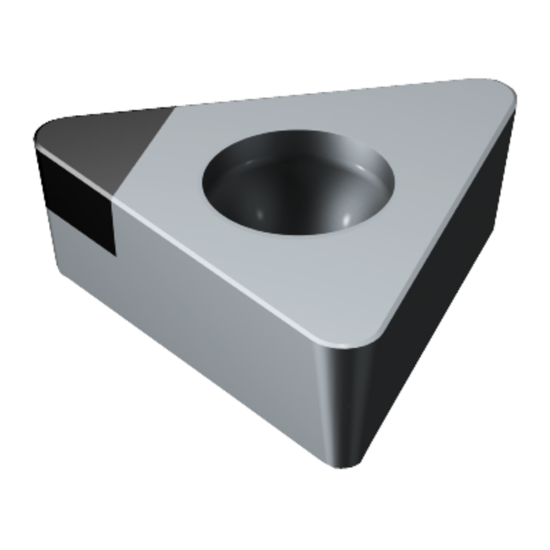

SANDVIK TCMW3(2.5)1FP CD05 Turning Insert Triangle

ANSI: TCMW3(2.5)1FP CD05

ISO: TCMW16T304FP CD05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN6257239
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Grade and Coating Description

PCD grade for finishing and semi-finishing of highly abrasive materials such as aluminum alloys with high silicon content, metal matrix composites (MMC), fiberglass, fiberboard, and wood laminates.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Grade CD05
Package Size 10
Insert Application Finishing, Semi Finishing
Insert Type Positive
Insert/Tool Insert
Application Turning Insert
Made In USA No
Dimensional Specifications
Cut Rating Aluminum, Gray Iron, High Temp
Insert Size Ic 16 "32"
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Cutting Edge Mat PCD
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Neutral
Insert Style TC
