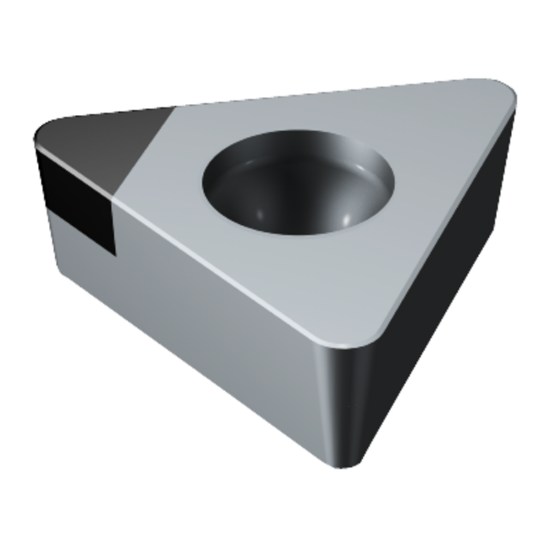

Picture of SANDVIK TCMW 3(2.5)1FRP CD10 Turning Insert Triangle PCD 0.016 Corner Radius

SANDVIK TCMW 3(2.5)1FRP CD10 Turning Insert Triangle PCD 0.016 Corner Radius

ANSI: TCMW 3(2.5)1FRP CD10

ISO: TCMW 16T304FRP CD10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5752846
Delivery date: 3-5 days
$185.40

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Grade and Coating Description

PVD-grade recommended for stable conditions when high metal removal is needed in medium to rough applications.

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Insert Application Semi Finishing, Finishing
Grade CD10
Insert Type Positive
Package Size 10
Insert/Tool Insert
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16 "32"
Corner Radius 0.0160 0.41MM
Cut Rating Aluminum, Gray Iron, High Temp
Cutting & Machining Properties
Cutting Edge Mat PCD
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TC
