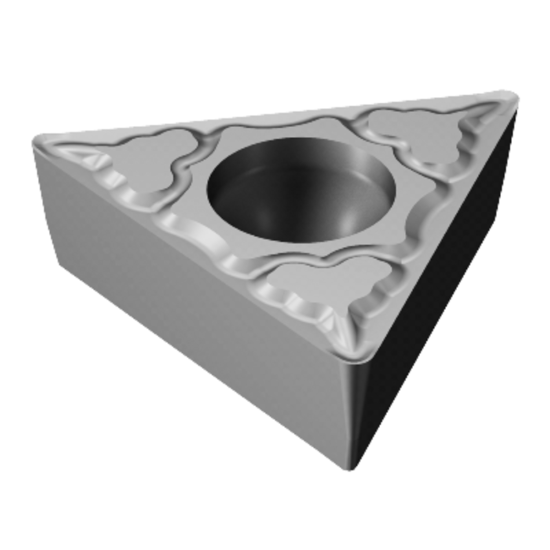

Picture of SANDVIK TCMT 1.8(1.5)1-Powder Metal 5015 Turning Insert Triangle

SANDVIK TCMT 1.8(1.5)1-Powder Metal 5015 Turning Insert Triangle

ANSI: TCMT 1.8(1.5)1-PM 5015

ISO: TCMT 090204-PM 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5751787
Delivery date: 3-5 days
$9.97

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert/Tool Insert
Insert Application Semi Finishing, Finishing
Grade 5015
Insert Type Positive
Application Turning Insert
Made In USA No
Package Size 10
Dimensional Specifications
Cut Rating <48HRC Steel
Insert Size Ic 09 "1.8"
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
Insert Style TC
