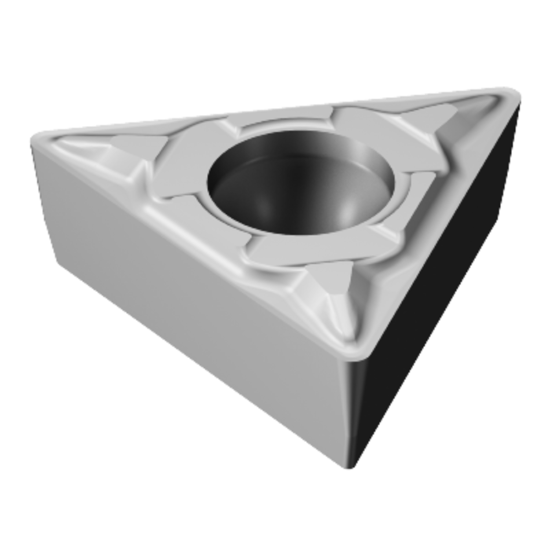

Picture of SANDVIK TCMT 1.2(1.2)2-PF 5015 Turning Insert Triangle Cermet 0.031 Corner Radius

SANDVIK TCMT 1.2(1.2)2-PF 5015 Turning Insert Triangle Cermet 0.031 Corner Radius

ANSI: TCMT 1.2(1.2)2-PF 5015

ISO: TCMT 06T102-PF 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5752004
Delivery date: 3-5 days
$9.97

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert/Tool Insert
Insert Type Positive
Application Turning Insert
Made In USA No
Insert Application Finishing, Semi Finishing
Package Size 10
Grade 5015
Dimensional Specifications
Cut Rating <48HRC Steel
Corner Radius 0.0310 0.79MM
Insert Size Ic 06 "1.2"
Cutting & Machining Properties
Insert Style TC
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
