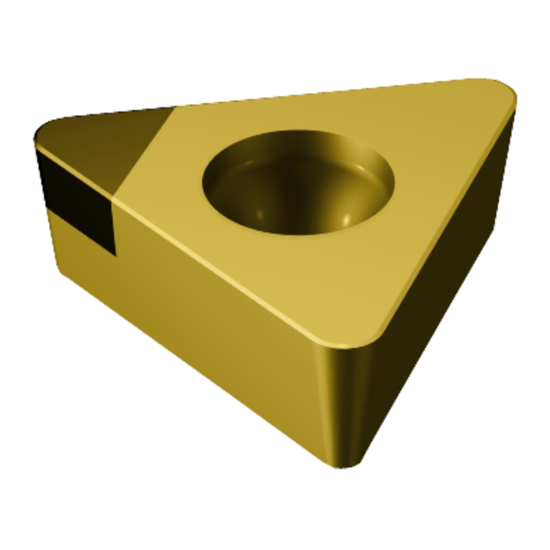

Picture of SANDVIK TCGW1.2(1.2)0S0320E 7115 Turning Insert Triangle

SANDVIK TCGW1.2(1.2)0S0320E 7115 Turning Insert Triangle

ANSI: TCGW1.2(1.2)0S0320E 7115

ISO: TCGW06T102S0320E 7115

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN7106088
Delivery date: 3-5 days
$68.70

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

TIN COATED First choice CBN grade for high feeds and/or depths of cut in continuous to light interrupted cuts at high speeds in case and induction hardened steels.

Products specifications
Attribute name Attribute value
General Product Information
Grade 7115
Package Size 10
Shipping State Illinois
Insert/Tool Insert
Insert Application Semi Finishing, Finishing
Insert Type Positive
Coating TiN
Application Turning Insert
Made In USA No
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Cut Rating >50HRC Steel
Insert Size Ic 06 "1.2"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Neutral
Insert Style TC
Cutting Edge Mat CBN
