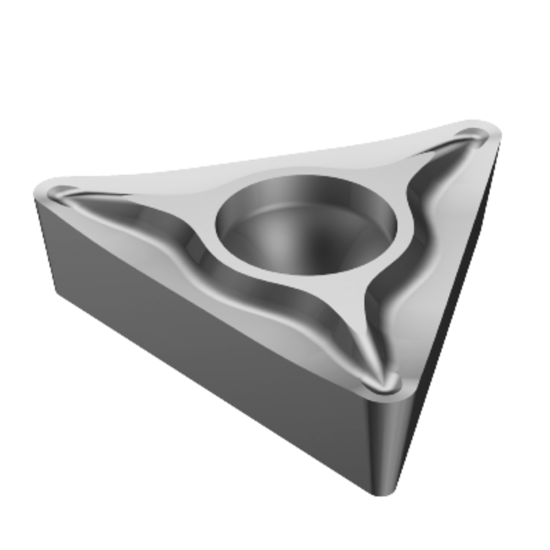

Picture of SANDVIK TCGT 221-UM 5015 Turning Insert Triangle

SANDVIK TCGT 221-UM 5015 Turning Insert Triangle

ANSI: TCGT 221-UM 5015

ISO: TCGT 110304-UM 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5752341
Delivery date: 3-5 days
$20.19

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert Application Medium, Semi Finishing
Application Turning Insert
Package Size 10
Insert/Tool Insert
Grade 5015
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Cut Rating <48HRC Steel
Insert Size Ic 11 "22"
Cutting & Machining Properties
Insert Style TC
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
Hand R/L Neutral
