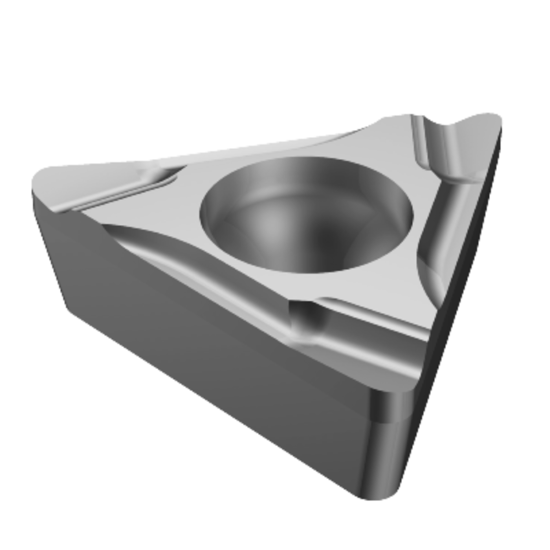

Picture of SANDVIK TCGT 1.8(1.5)0L-K 5015 Turning Insert Triangle

SANDVIK TCGT 1.8(1.5)0L-K 5015 Turning Insert Triangle

ANSI: TCGT 1.8(1.5)0L-K 5015

ISO: TCGT 090202L-K 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5752055
Delivery date: 3-5 days
$19.53

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Turning Insert
Package Size 10
Grade 5015
Insert Application Semi Finishing, Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Insert Size Ic 09 "1.8"
Cut Rating <48HRC Steel
Cutting & Machining Properties
Hand R/L Left
Insert Style TC
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
