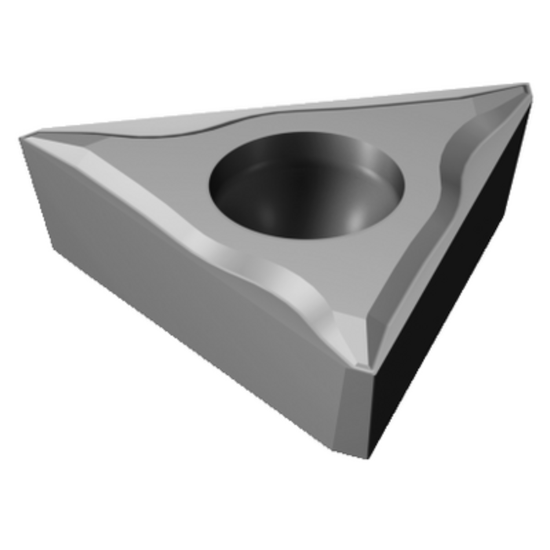

Picture of SANDVIK TCEX 22(00)L-F 5015 Turning Insert Triangle

SANDVIK TCEX 22(00)L-F 5015 Turning Insert Triangle

ANSI: TCEX 22(00)L-F 5015

ISO: TCEX 11030800L-F 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5752290
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Insert Type Positive
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Grade 5015
Application Turning Insert
Package Size 10
Dimensional Specifications
Corner Radius 0.0010 0.03MM
Insert Size Ic 11 "22"
Cut Rating <48HRC Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Cermet
Insert Style TC
Hand R/L Left
