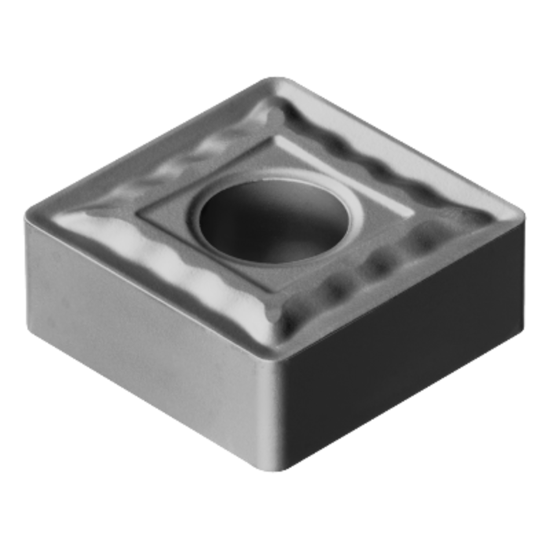

SANDVIK SNMG 433-QM 5015 Turning Insert Square

ANSI: SNMG 433-QM 5015

ISO: SNMG 120412-QM 5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5749877
Delivery date: 3-5 days
$14.83

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

UNCOATED CERMET FOR STEEL MACHINGING FINISHING

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Medium
Insert/Tool Insert
Application Turning Insert
Package Size 10
Insert Type Negative
Made In USA No
Shipping State Illinois
Grade 5015
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Cut Rating <48HRC Steel
Insert Size Ic 12 "43"
Cutting & Machining Properties
Hand R/L Neutral
Cutting Edge Mat Cermet
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
