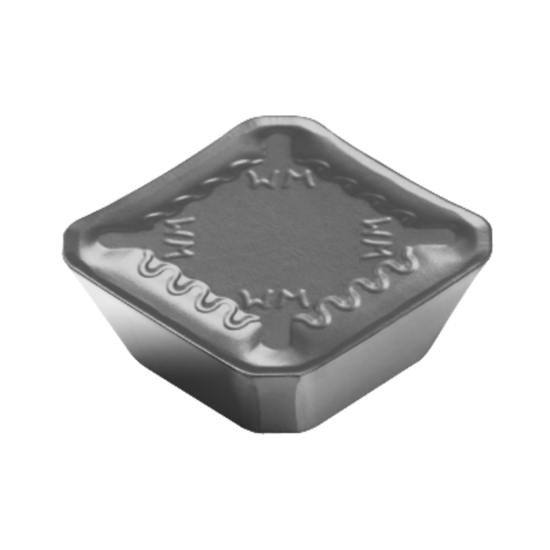

Picture of SANDVIK SEKR 43 AZ-WM 530 T-Max Milling Insert Insert for other Cutters - Face Milling 45

SANDVIK SEKR 43 AZ-WM 530 T-Max Milling Insert Insert for other Cutters - Face Milling 45

ANSI: SEKR 43 AZ-WM 530

ISO: SEKR12 04 AZ-WM 530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5749722
Delivery date: 3-5 days
$18.20

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

SEKR 12 04 AZ-WM 530 Sandvik T-Max®, Cermet Insert for Milling, Uncoated

Grade and Coating Description

CERMET FOR STEEL AND STAINLESS

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Type Positive
Application Milling Insert
Grade 530
Shipping State Illinois
Package Size 10
Insert Application Medium
Made In USA No
Dimensional Specifications
Corner Radius 0.0590 1.50MM
Depth Of Cut Max 0.2520
Insert Size Ic 43
Cut Rating <40HRC Steel, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SE
Cutting Edge Mat Cermet
Hand R/L Neutral
