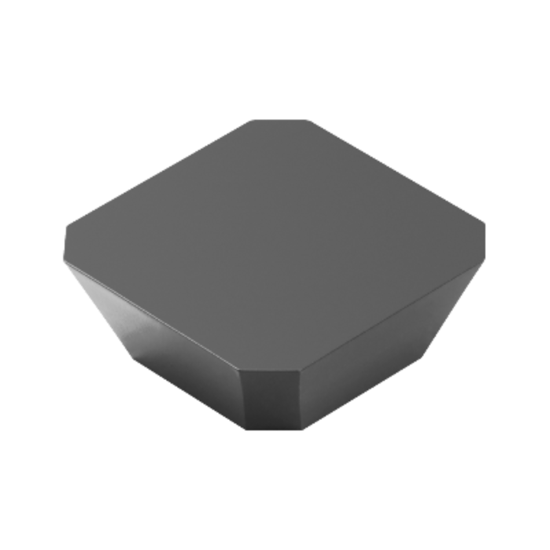

Picture of SANDVIK SEKN 43 AZ 530 T-Max Milling Insert Insert for other Cutters - Face Milling 45

SANDVIK SEKN 43 AZ 530 T-Max Milling Insert Insert for other Cutters - Face Milling 45

ANSI: SEKN 43 AZ 530

ISO: SEKN12 04 AZ 530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5749476
Delivery date: 3-5 days
$16.66

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

SEKN 12 04 AZ 530 Sandvik T-Max®, Cermet Insert for Milling, Uncoated

Grade and Coating Description

CERMET FOR STEEL AND STAINLESS

Products specifications
Attribute name Attribute value
General Product Information
Grade 530
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Application Milling Insert
Insert Application Medium
Package Size 10
Insert Type Positive
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Insert Size Ic 12 "43"
Depth Of Cut Max 0.2520
Cut Rating <40HRC Steel, Stainless Steel
Cutting & Machining Properties
Insert Style SE
Hand R/L Neutral
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Square
