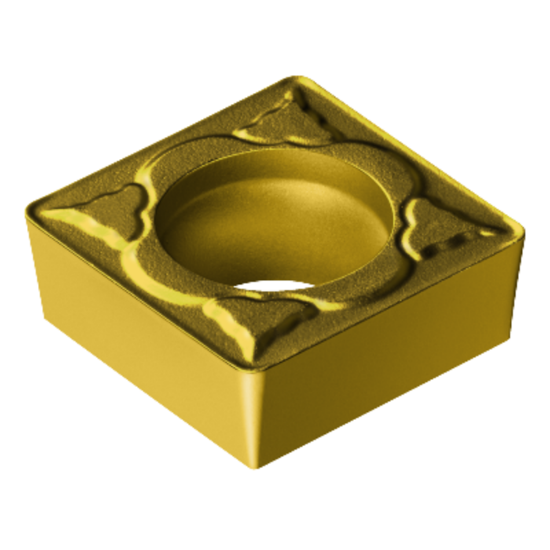

Picture of SANDVIK SCMT 3(2.5)2-Powder Metal 1525 Turning Insert Square

SANDVIK SCMT 3(2.5)2-Powder Metal 1525 Turning Insert Square

ANSI: SCMT 3(2.5)2-PM 1525

ISO: SCMT 09T308-PM 1525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5749364
Delivery date: 3-5 days
$12.09

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD TiCN+TiN STEEL GENERAL MACHINING

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Grade 1525
Insert Application Medium, Semi Finishing
Coating TiAIN + TiN
Package Size 10
Application Turning Insert
Made In USA No
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron
Insert Size Ic 09 "32"
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Hand R/L Neutral
Insert Style SC
Insert Shape/Cutter Pocket Shape Square
Cutting Edge Mat Cermet
