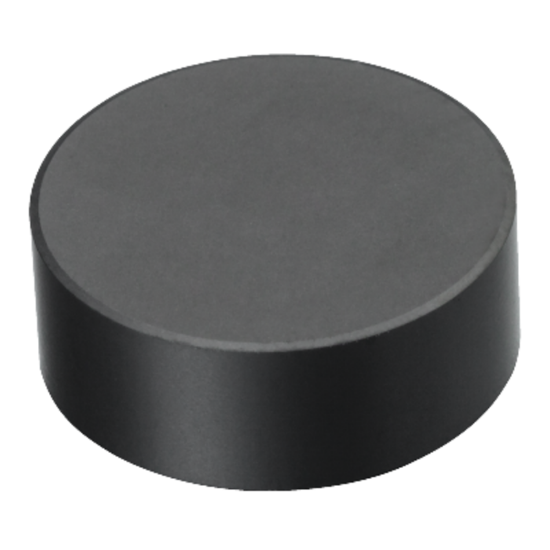

SANDVIK RNG43S1020M 7925 Turning Insert Round

ANSI: RNG43S1020M 7925

ISO: RNG120400S1020M 7925

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5782765
Delivery date: 3-5 days
$218.36

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

TIN COATED Solid CBN grade, originally designed for high-alloyed cast iron, that also works as a complement in hardened steels with greater depths of cut or higher feeds at low to medium speeds.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Medium
Coating TiN
Insert/Tool Insert
Package Size 10
Shipping State Illinois
Insert Type Negative
Application Turning Insert
Grade 7925
Made In USA No
Dimensional Specifications
Corner Radius 0.2500 6.35MM
Cut Rating Ductile Iron, Gray Iron
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Hand R/L Neutral
Cutting Edge Mat CBN
Insert Style RN
