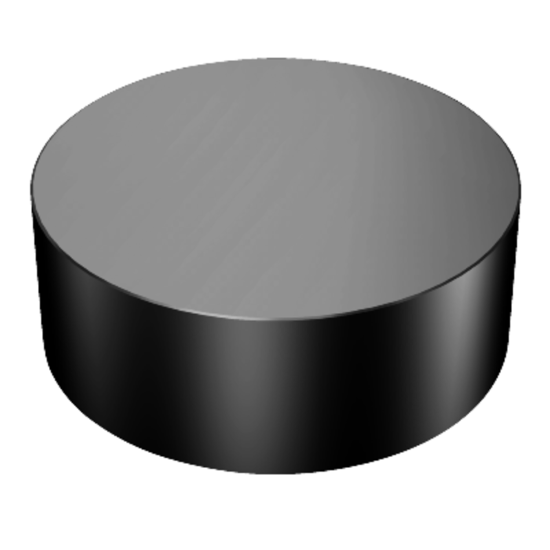

SANDVIK RNG 85K8015 650 Turning Insert Round

ANSI: RNG 85K8015 650

ISO: RNG 250700K8015 650

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5741156
Delivery date: 3-5 days
$48.82

Cutting Edge Definition

Ceramic Inserts are indexable inserts made from Aluminium Oxide Al2O3 or Silicon Nitride Si3N4. They have a hardness of 2,100-2,500 HV (About 40% above carbide), which enables them to machine Hard Steel up to 55 HRC. It can also machine cast iron and nickel-based alloys six times faster compared to coated carbide inserts. Wisker fiber available to get the best toughness.

Grade and Coating Description

WISKER FIBER CERAMIC WITH HIGH TOUGHNESS

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Turning Insert
Made In USA No
Insert Application Semi Finishing, Medium
Package Size 10
Insert/Tool Insert
Grade 650
Shipping State Illinois
Dimensional Specifications
Cut Rating >50HRC Steel, Gray Iron, High Temp
Insert Size Ic 25 "85"
Corner Radius 0.5000 12.70MM
Cutting & Machining Properties
Cutting Edge Mat Ceramic
Insert Shape/Cutter Pocket Shape Round
Hand R/L Neutral
Insert Style RN
