SANDVIK RCKT 16 06 M0-WM 235 CoroMill 200/331 Insert; Profile Milling

ANSI: RCKT 16 06 M0-WM 235

ISO: RCKT 16 06 M0-WM 235

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5740522
Delivery date: 3-5 days
$20.55

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

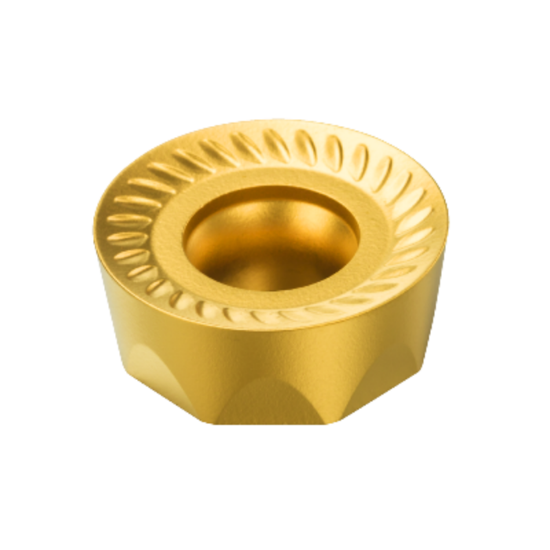

RCKT 16 06 M0-WM 235 Sandvik CoroMill® 200, Carbide Insert for Milling, TiCN + TiN Coating

Grade and Coating Description

CARBIDE TICN,TIN FOR STEEL AND STAINLESS TOUGH GRADE

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Grade 235
Shipping State Illinois
Insert/Tool Insert
Insert Application Medium
Made In USA No
Coating TiCN + TiN
Insert Type Positive
Application Milling Insert
Dimensional Specifications
Corner Radius 0.3150 8.00MM
Depth Of Cut Max 0.0921
Cut Rating <30HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Carbide
Hand R/L Right
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
