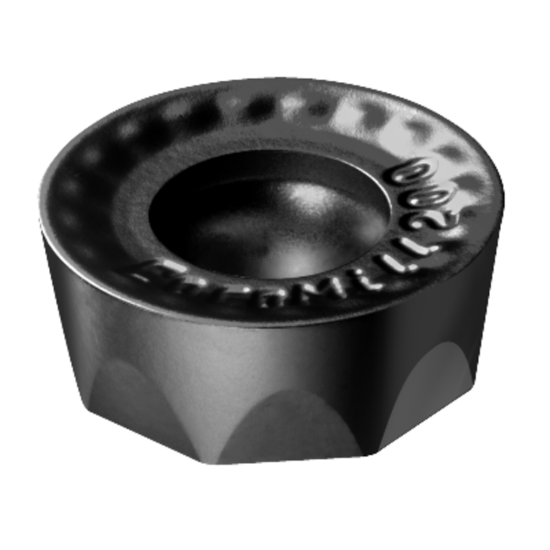

SANDVIK RCKT 10 T3 M0-KH 3040 CoroMill 200/331 Insert; Profile Milling

ANSI: RCKT 10 T3 M0-KH 3040

ISO: RCKT 10 T3 M0-KH 3040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5739822
Delivery date: 3-5 days
$12.52

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

RCKT 10 T3 M0-KH 3040 Sandvik CoroMill® 200, Carbide Insert for Milling, TiCN + Al2O3 Coating

Grade and Coating Description

CVD TiCN+Al2O3+TiN IRON GREY AND DUCTILE

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Milling Insert
Grade 3040
Coating TiCN + Al2O3
Package Size 10
Shipping State Illinois
Insert Application Roughing
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Depth Of Cut Max 0.1969
Corner Radius 0.1970 5.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Insert Style RC
Cutting Edge Mat Carbide
Hand R/L Right
