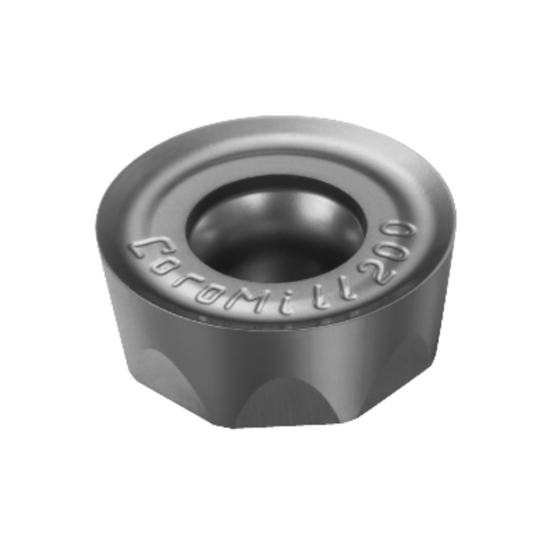

Picture of SANDVIK RCHT 12 04 M0-PL 530 CoroMill 200/331 Insert; Profile Milling

SANDVIK RCHT 12 04 M0-PL 530 CoroMill 200/331 Insert; Profile Milling

ANSI: RCHT 12 04 M0-PL 530

ISO: RCHT 12 04 M0-PL 530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5739884
Delivery date: 3-5 days
$12.90

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

RCHT 12 04 M0-PL 530 Sandvik CoroMill® 200, Cermet Insert for Milling, Uncoated

Grade and Coating Description

CERMET FOR STEEL AND STAINLESS

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Milling Insert
Grade 530
Made In USA No
Shipping State Illinois
Insert Application Finishing
Insert Type Positive
Package Size 10
Dimensional Specifications
Depth Of Cut Max 0.0693
Cut Rating <40HRC Steel, Stainless Steel
Corner Radius 0.2360 5.99MM
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Hand R/L Right
