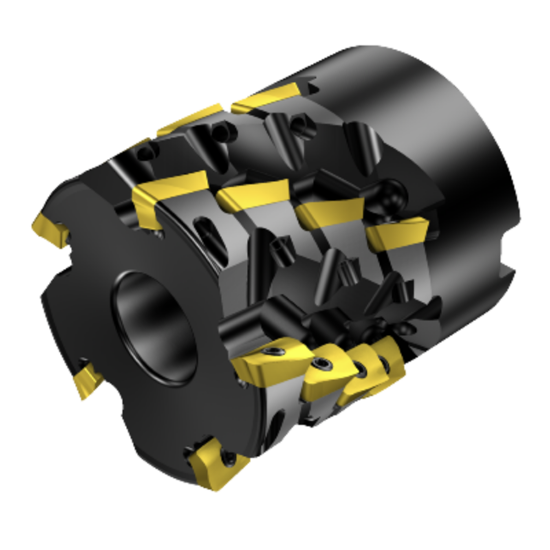

Picture of SANDVIK RA390-051R19-57M, CoroMill 390 Square Shoulder Milling Cutter, 2.000" Cutting Diameter

SANDVIK RA390-051R19-57M, CoroMill 390 Square Shoulder Milling Cutter, 2.000" Cutting Diameter

ANSI: RA390-051R19-57M

ISO: RA390-051R19-57M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5739659
Delivery date: 3-5 days
$1,538.82
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Application Face Milling, Side Milling, Ramp Milling, Slot Milling, Pocket Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 12
Cutter Dia 2.0000 50.80MM
Overall Len 3.2520 82.60MM
Depth Of Cut Max 2.2700
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Hand R/L Right
