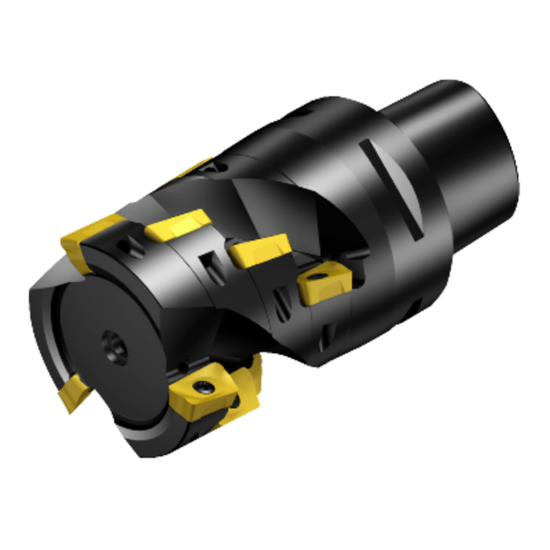

Picture of SANDVIK RA390-051C6-99L, CoroMill 390 Square Shoulder Milling Cutter, 2.000" Cutting Diameter

SANDVIK RA390-051C6-99L, CoroMill 390 Square Shoulder Milling Cutter, 2.000" Cutting Diameter

ANSI: RA390-051C6-99L

ISO: RA390-051C6-99L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5740074
Delivery date: 3-5 days
$1,812.80
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type PSC "Capt0 Type"
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 14
Machine Side Connection Size 2.3622 60.00MM
Overall Len 5.3840 136.75MM
Tool Material Steel
Shank/Pilot Dia 2.3622 60.00MM
Depth Of Cut Max 3.9300
Cutting & Machining Properties
Insert Style R390
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
