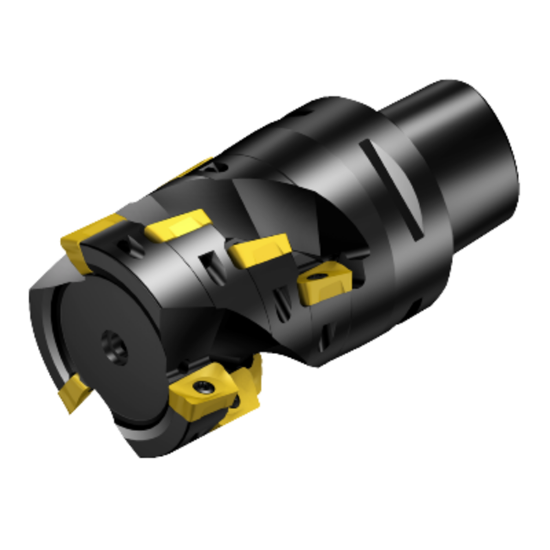

Picture of SANDVIK RA390-051C5-43L, CoroMill 390 Square Shoulder Milling Cutter, 2.000" Cutting Diameter

SANDVIK RA390-051C5-43L, CoroMill 390 Square Shoulder Milling Cutter, 2.000" Cutting Diameter

ANSI: RA390-051C5-43L

ISO: RA390-051C5-43L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5740114
Delivery date: 3-5 days
$1,329.73
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Application Side Milling, Long Edge Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Shank/Pilot Dia 1.9685 50.00MM
Flutes/Inserts 6
Machine Side Connection Type PSC "Capt0 Type"
Tool Material Steel
Overall Len 3.0930 78.56MM
Depth Of Cut Max 1.7200
Machine Side Connection Size 1.9685 50.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
Insert Style R390
