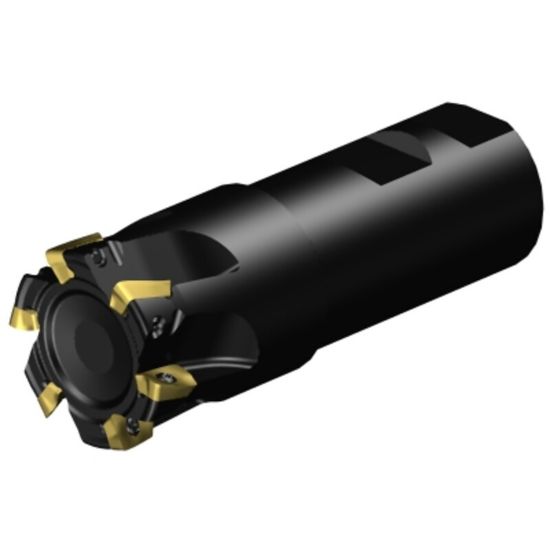

Picture of SANDVIK RA390-038M32-11H, CoroMill 390 Square Shoulder Milling Cutter, 1.500" Cutting Diameter

SANDVIK RA390-038M32-11H, CoroMill 390 Square Shoulder Milling Cutter, 1.500" Cutting Diameter

ANSI: RA390-038M32-11H

ISO: RA390-038M32-11H

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5740165
Delivery date: 3-5 days
$633.45
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Shipping State Illinois
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.3940
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Flutes/Inserts 6
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 2.8600 72.64MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
Insert Style R390
Coolant Thru Yes
