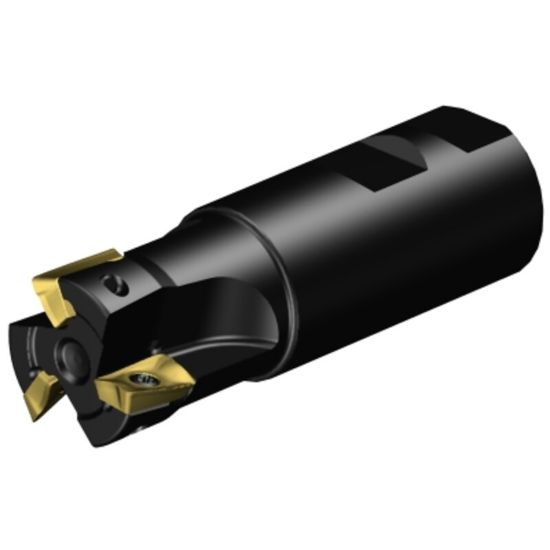

Picture of SANDVIK RA390-032M32-17M, CoroMill 390 Square Shoulder Milling Cutter, 1.250" Cutting Diameter

SANDVIK RA390-032M32-17M, CoroMill 390 Square Shoulder Milling Cutter, 1.250" Cutting Diameter

ANSI: RA390-032M32-17M

ISO: RA390-032M32-17M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5740189
Delivery date: 3-5 days
$536.63
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Side Milling, Ramp Milling, Slot Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Weldon
Tool Material Steel
Overall Len 2.8600 72.64MM
Depth Of Cut Max 0.6180
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Hand R/L Right
Cool Sply Type Internal
Coolant Thru Yes
Insert Style R390
Insert Shape/Cutter Pocket Shape Parallelogram
