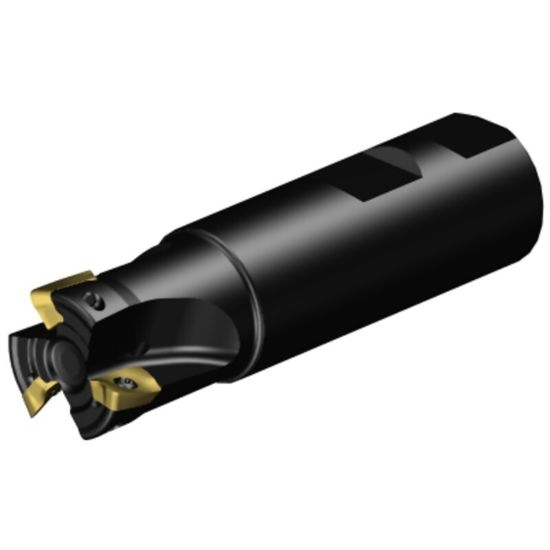

Picture of SANDVIK RA390-025M25-11M, CoroMill 390 Square Shoulder Milling Cutter, 1.000" Cutting Diameter

SANDVIK RA390-025M25-11M, CoroMill 390 Square Shoulder Milling Cutter, 1.000" Cutting Diameter

ANSI: RA390-025M25-11M

ISO: RA390-025M25-11M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5739315
Delivery date: 3-5 days
$487.19
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling, Pocket Milling, Face Milling, Ramp Milling, Side Milling
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.3940
Machine Side Connection Type Weldon
Overall Len 2.6100 66.29MM
Cutter Dia 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
Insert Style R390
Coolant Thru Yes
