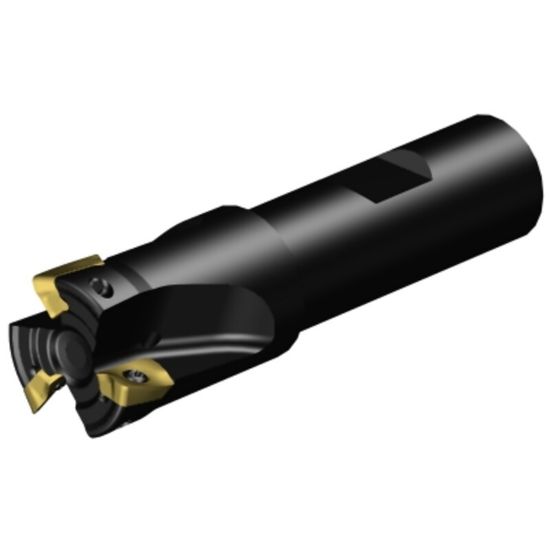

Picture of SANDVIK RA390-025M19-11M, CoroMill 390 Square Shoulder Milling Cutter, 1.000" Cutting Diameter

SANDVIK RA390-025M19-11M, CoroMill 390 Square Shoulder Milling Cutter, 1.000" Cutting Diameter

ANSI: RA390-025M19-11M

ISO: RA390-025M19-11M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5739364
Delivery date: 3-5 days
$487.19
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 3
Cutter Dia 1.0000 25.40MM
Depth Of Cut Max 0.3940
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 2.4850 63.12MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
Insert Style R390
