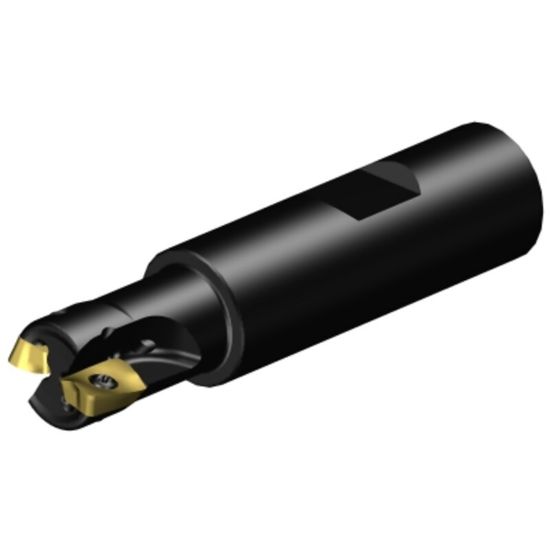

Picture of SANDVIK RA390-016M19-11L, CoroMill 390 Square Shoulder Milling Cutter, 0.625" Cutting Diameter

SANDVIK RA390-016M19-11L, CoroMill 390 Square Shoulder Milling Cutter, 0.625" Cutting Diameter

ANSI: RA390-016M19-11L

ISO: RA390-016M19-11L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5739427
Delivery date: 3-5 days
$415.09
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Insert/Tool Tool
Package Size 1
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type Weldon
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 2
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 2.2350 56.77MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3940
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
Insert Style R390
