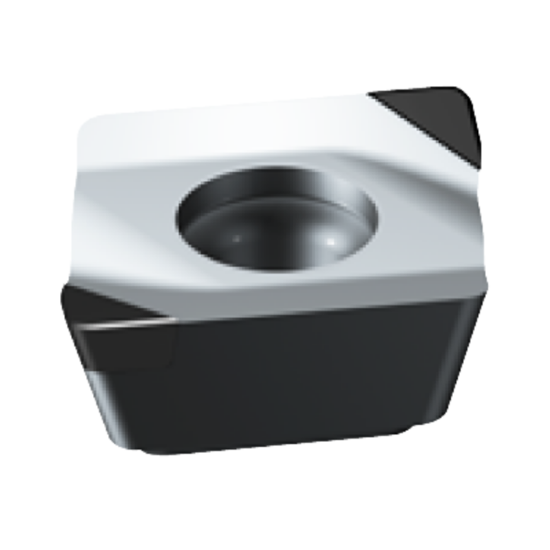

Picture of SANDVIK R590-110508H-PR2-KM CB50 CoroMill Century, PCBN Insert for Milling, Uncoated Insert

SANDVIK R590-110508H-PR2-KM CB50 CoroMill Century, PCBN Insert for Milling, Uncoated Insert

ANSI: R590-110508H-PR2-KM CB50

ISO: R590-110508H-PR2-KM CB50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN6136351
Delivery date: 3-5 days
$187.46

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

R590-110508H-PR2-KM CB50 Sandvik CoroMill Century, PCBN Insert for Milling, Uncoated

Grade and Coating Description

Grade for finishing on hard cast iron.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Insert
Application Milling Insert
Grade CB50
Insert Application Medium
Package Size 10
Dimensional Specifications
Depth Of Cut Max 0.0790
Cut Rating Ductile Iron, Gray Iron
Corner Radius 0.0320 0.81MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style R590
Cutting Edge Mat CBN
