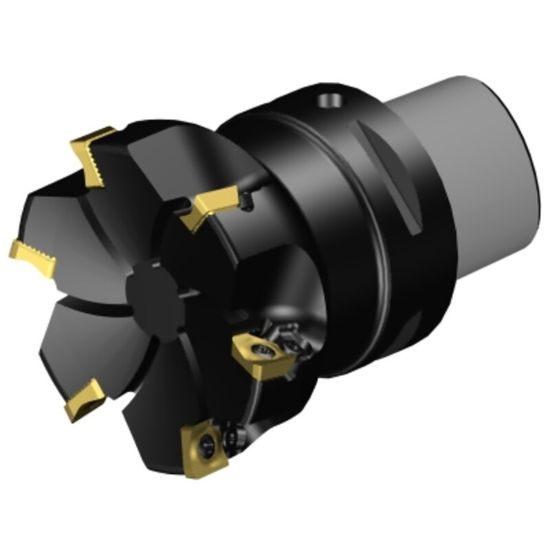

Picture of SANDVIK R590-080C6-11M, CoroMill Century Square Shoulder Milling Cutter, 80mm Cutting Diameter

SANDVIK R590-080C6-11M, CoroMill Century Square Shoulder Milling Cutter, 80mm Cutting Diameter

ANSI: R590-080C6-11M

ISO: R590-080C6-11M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SANDVIK
SKU: SAN5747729
Delivery date: 3-5 days
$1,538.91
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Over Hang 2.4800
Tool Material Steel
Flutes/Inserts 6
Depth Of Cut Max 0.4330
Machine Side Connection Type PSC "Capt0 Type"
Machine Side Connection Size 2.3622 60.00MM
Shank/Pilot Dia 2.3622 60.00MM
Overall Len 2.7950 70.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
Insert Style R590
Coolant Thru Yes
